PowerUP Aircraft Magnetos

New Direct-Replacement Aircraft Magneto: Now Accepting Orders

With over 35 years of experience manufacturing FAA PMA-approved replacement magneto parts, PowerUP Ignition is proud to introduce an all-new direct-replacement aircraft magneto for general aviation. Designed with performance improvements in key components, including the coil, capacitor, breaker points, and impulse coupling, the PowerUP magneto is a superior-quality choice for piston aircraft. Hartzell Aviation is the factory-direct source for all PowerUP magneto products.

Aircraft Magneto Overhauls

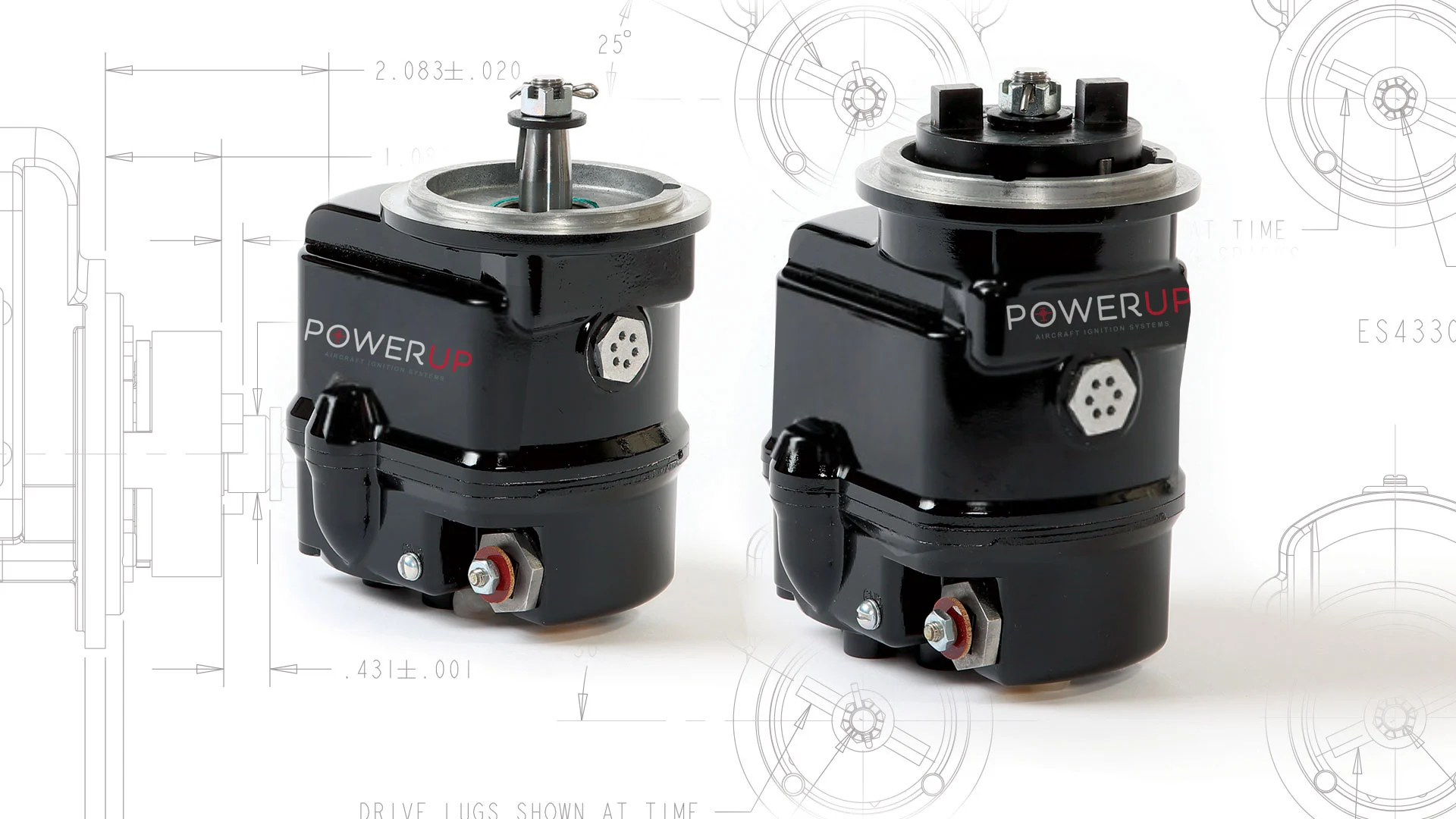

2 PowerUP magnetos.

Dedicated to Quality Aircraft Magneto Inspections & Overhaul Services

PowerUP overhauled magnetos combine the best of serviceable and new parts to deliver OEM quality at an overhauled price. With the industry’s largest supply of high-quality Bendix dual magneto cores, stringent inspection criteria ensure only top-performing parts are used. When your PowerUP overhauled magneto is delivered, it looks and functions like new, ready to be installed on your aircraft’s engine. All overhaul work is performed by Hartzell Aviation MRO.

PowerUP Internal Component Improvements

  • Improved capacitor design: Internally grounded lead for improved durability. Square insulator and stud base, less prone to over-torqueing during installation.
  • Improved coil design: Thicker insulation allows for a higher spark output. Thicker lamination plates on the top and bottom resist deformation during assembly.
  • Improved breaker points: Clamp-up force applied to the metal frame instead of plastic. Improved spring eliminates point bounce. Together, these methods reduce point drift over the service life.
  • Improved block assembly: Arc suppression ribs added to the bridge in the high-tension carbon brush zone, reducing misfires. Geometric asymmetry prevents incorrect installation.
  • Improved distributor gear: Made from Monel for superior arc erosion resistance. The electrode is heat-staked to the shaft and hub for mechanical stability.

ES New PowerUP

  • Internal components PMA-approved and in use for over a decade
  • In service for two years with proven performance
  • One-year warranty
  • Identifiable by the “ES” part number prefix
  • PowerUP magneto overhaul manual available

Overhaul Solutions

HP PowerUP Premium Overhaul

  • Replaces the legacy QAA FOH magneto
  • Overhauled in accordance with OEM-approved data
  • One-year warranty
  • All internal components replaced with new PowerUP technically enhanced details: impulse coupling, coil, block, gear, capacitor, and breaker points
  • Priced between a new PowerUP magneto and a Value Overhaul

Hartzell PowerUP Value Overhaul

  • Overhauled by Hartzell Aviation MRO in accordance with FAA-approved data (see Form 8130)
  • All wear components replaced
  • Block, gear, impulse coupling, and coil inspected and replaced as necessary (some reclaimed parts may be used)
  • Six-month warranty
  • 500-hour inspection and repair available
  • Value priced

ES 4300 & ES 6300 Series Aircraft Magnetos

PowerUP’s own ES4300 and ES6300 series aircraft magnetos are offered in both non-impulse and impulse-coupled configurations, compatible with 4- and 6-cylinder engines. A complete line of PMA replacement parts, overhaul service, and 500-hour inspection services is available.

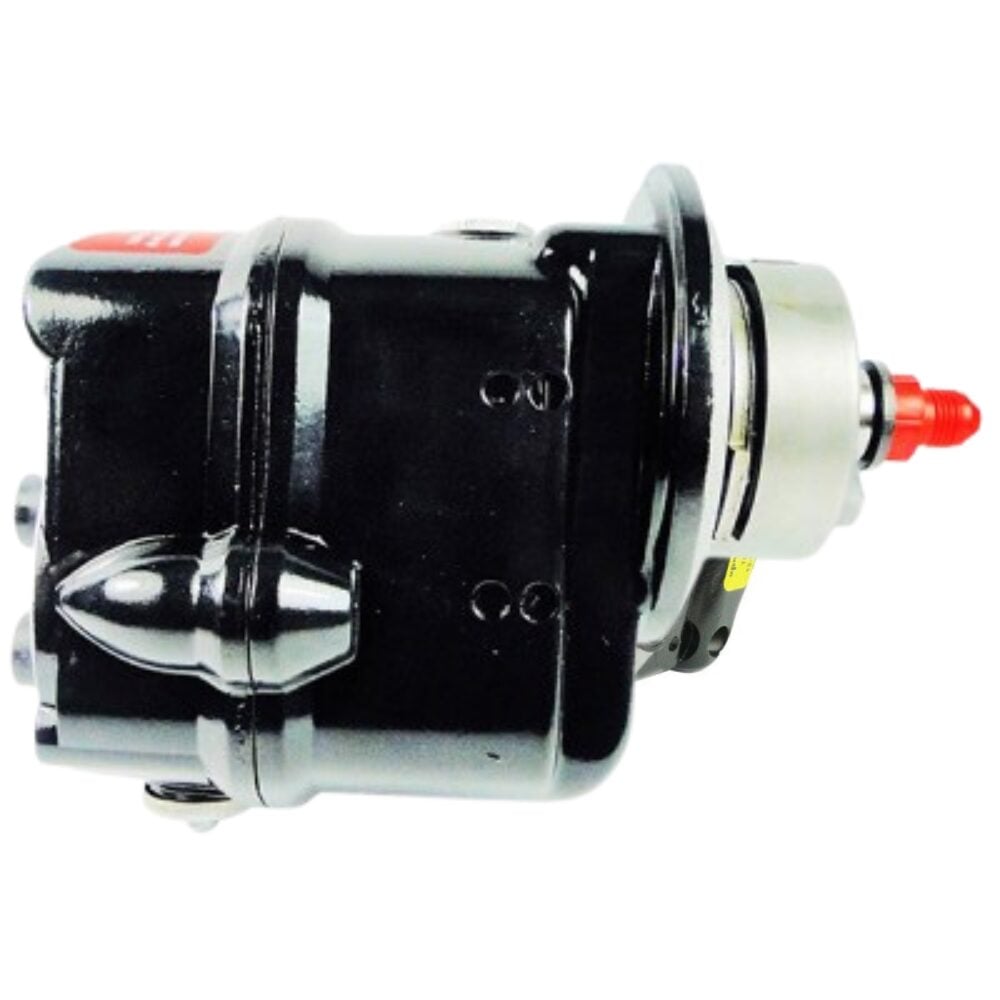

ES 4300 and ES 6300 Series aircraft magneto

Bendix 20 & 200 Series Aircraft Magnetos

Bendix/CMI (formerly TCM) 20-series magnetos are impulse-coupled only, while 200-series magnetos incorporate the “Shower of Sparks” system. Both are available in 4- and 6-cylinder configurations. A complete line of PMA replacement parts, overhaul service, and 500-hour inspection capabilities is available.

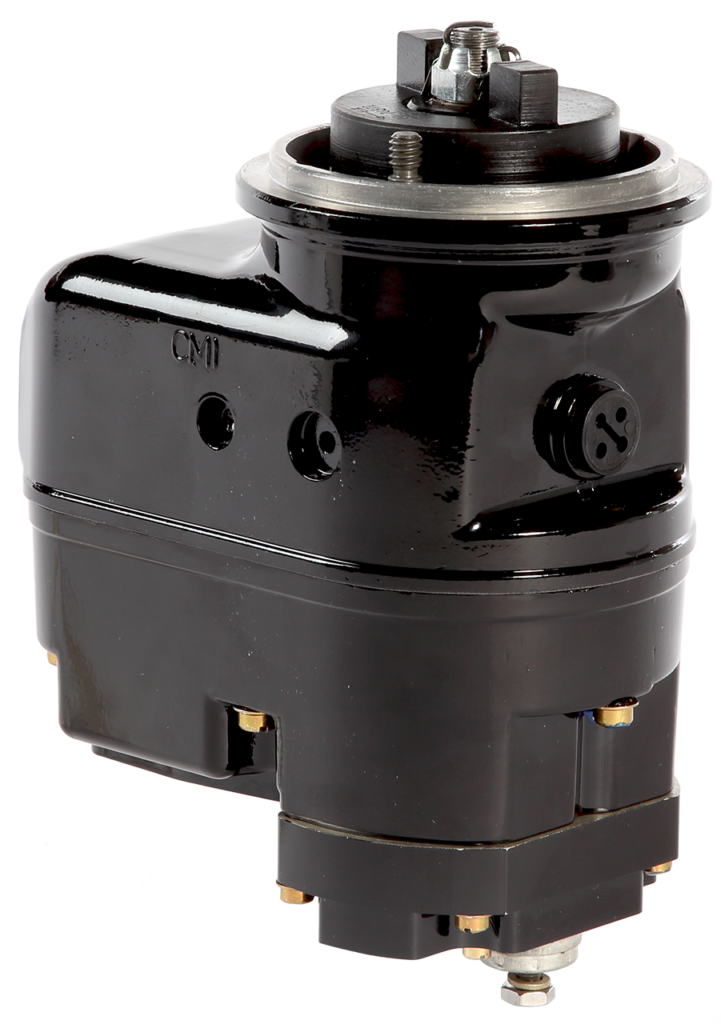

Bendix 20 and 200 Series aircraft magneto

Bendix 1200 Series Aircraft Magnetos

Bendix/CMI (formerly TCM) 1200-series magnetos can be either impulse-coupled or “Shower of Sparks” configuration, in both 4- and 6-cylinder versions. A complete line of PMA replacement parts, overhaul service, and 500-hour inspection capabilities is available.

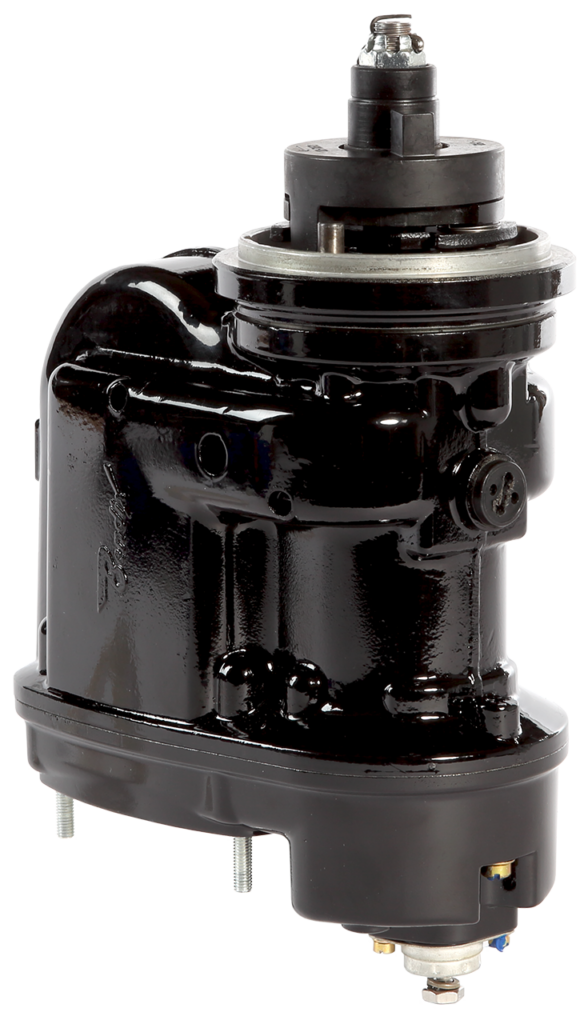

Bendix 1200 Series aircraft magneto

Bendix D2000/D3000 Series Aircraft Magnetos

PowerUP is the only OEM providing new manufactured and service parts for D2000/D3000 dual magnetos installed on thousands of Lycoming engines. PowerUP overhauled dual magnetos are high quality, using a combination of new parts and an FAA PMA-approved housing. Supporting more than 25,000 owners of engines equipped with the dual magneto, PowerUP delivers a magneto with numerous key improvements over the original D2000/D3000 design:

  • All-aluminum frame replaces the original magnesium frames last made in 2010. The aluminum frame is stronger, longer lasting, and far less likely to crack or corrode.
  • All-new distributor block and gears. Thousands of these parts have been installed, with tens of thousands of flight hours accrued over the past 20 years.
  • All-new coils, condensers, and contact points.

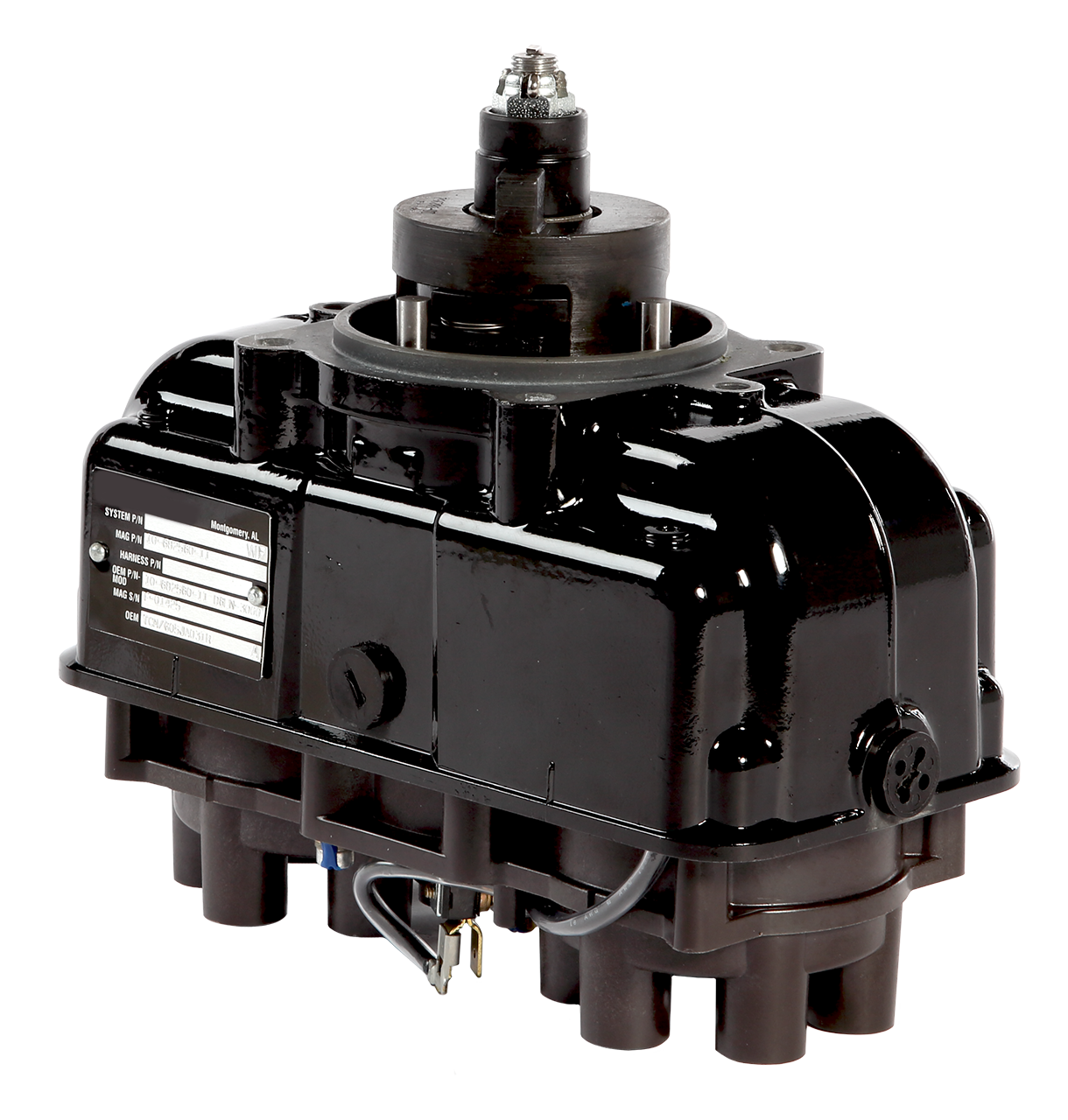

Bendix D2000 and D3000 Series aircraft magneto
