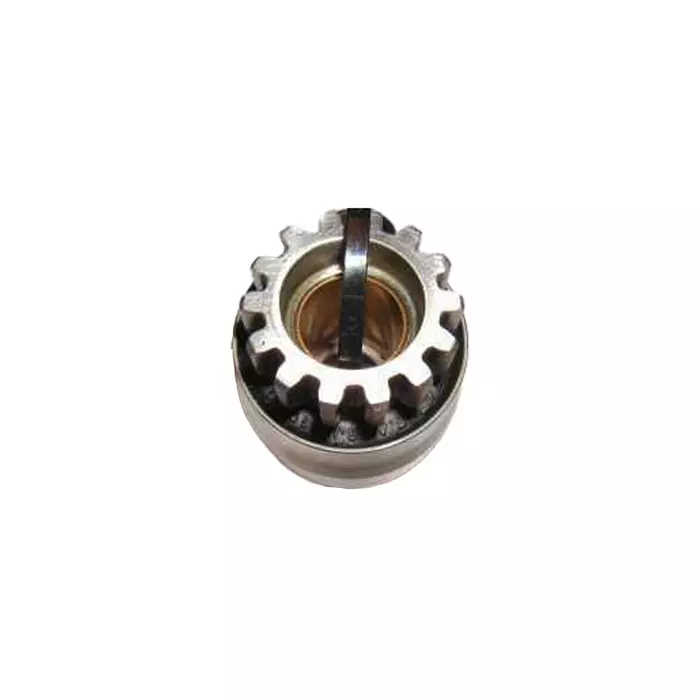

635796 Alternator Drive Coupling

The 635796 Alternator Drive Coupling is a crucial component designed to connect the alternator to the engine, ensuring reliable power generation for aircraft systems. This drive coupling is engineered for durability and efficiency, featuring a robust construction that includes high-strength aluminum for lightweight yet resilient performance.

Weighing approximately 1.2 lbs and with dimensions optimized for compact installation, it offers a torque capacity of up to 150 lb-ft and operates effectively within a temperature range of -40°F to 250°F. This drive hub provides a secure and vibration-resistant connection, which enhances overall alternator reliability and performance. Its durable materials and precise engineering contribute to reduced maintenance needs and extended service life, making it an essential part of maintaining dependable power generation in aviation applications.

The 635796 Alternator Drive Coupling is compatible with a wide range of aircraft engines, including the C-75, C-85, C-90, C-115, C-125, C-145, E-165, E-185, E-225, O-200, O-300, GO-300, GIO-300, IO-240, IO-360, TSIO-360, and LTSIO-360 models. It is widely used in commercial, military, and recreational aviation settings, where reliable power generation is critical.

In commercial and military aircraft, the drive coupling ensures stable alternator performance, which is essential for powering avionics and other systems. For recreational aircraft, it enhances engine efficiency and minimizes maintenance by providing a dependable connection.

The 635796 drive coupling improves overall engine performance, reduces wear, and ensures consistent power output, making it a key component for reliable operation in diverse aviation environments.

The latest component improvements of the 635796 Alternator Drive Coupling include several notable advancements in design, materials, and technology. For instance, this drive hub features a refined coupling geometry that improves alignment and reduces vibration, ensuring a more stable connection between the alternator and engine. It also includes precision-machined components and improved lubrication systems that reduce friction and wear, further enhancing reliability and efficiency. Plus, with advanced composites and high-strength aluminum alloys, the alternator drive coupling’s durability and resistance to wear and corrosion is enhanced, even under extreme operational conditions.

These improvements collectively contribute to a longer service life, reduced maintenance needs, and consistent, reliable performance in a variety of aviation applications.

The overhaul service for the 635796 Alternator Drive Coupling includes a thorough inspection to identify any wear or damage, meticulous cleaning to remove contaminants, and the replacement of worn or faulty parts with high-quality replacements. The drive hub undergoes rigorous testing to ensure it meets all performance and safety standards. The typical turnaround time for an overhaul is generally 1-2 weeks, allowing for a swift return to service.

When you opt for an overhaul service withHartzell Aviation, you get an extended lifespan of the drive coupling, enhanced performance due to restored precision and reliability, and significant cost savings compared to purchasing a new unit.

For more information about alternator drive coupling installation, read up on ourHartzell Aviationblog. *Be sure to retain the bushing from your core. The bushing is required for proper installation of this part and is not provided with an exchange.

Step-by-Step Guide for Installing the 635796 Alternator Drive Coupling

1. Ensure the aircraft is safely secured, and disconnect the power source. Gather necessary tools, including wrenches, screwdrivers, a torque wrench, and safety goggles. Wear gloves to protect your hands.
2. Locate the existing drive coupling, then carefully disconnect any associated components or wiring. Remove the mounting bolts or screws securing the old coupling and carefully extract it from its position.
3. Before installing the new drive coupling, check the mounting area for debris, damage, or wear. Clean the area to ensure a proper fit and inspect the shaft and surrounding components for any issues.
4. Position the 635796 Alternator Drive Coupling in the mounting location, ensuring proper alignment with the shaft and mounting holes. Insert and tighten the mounting bolts or screws to the manufacturer’s specified torque settings.
5. Reattach any components or wiring disconnected during the removal process. Ensure all connections are secure and properly insulated to prevent electrical faults.
6. Reconnect the power source and perform a functional test of the alternator and drive coupling to ensure proper operation. Check for any unusual noises or issues during the test.
7. Inspect all connections and fastenings to confirm everything is properly secured and functioning as expected.

To verify the compatibility of the 635796 Alternator Drive Coupling with your specific aircraft, consult the aircraft’s maintenance manual. Additionally, customers can contact our support team for personalized assistance in confirming the correct drive coupling for their aircraft model and engine configuration.

What is the lead time for ordering this alternator drive coupling?
The lead time for ordering the 635796 Alternator Drive Coupling typically ranges from 5 to 10 business days, depending on availability and shipping options. For more precise timing, please check with our team.

What are the signs that my alternator drive coupling needs servicing or replacement?
Signs that your alternator drive coupling may need servicing or replacement include unusual vibrations or noises during operation, difficulty in generating consistent electrical power, visible wear or damage on the coupling, and reduced alternator performance. If you notice any of these issues, it’s important to inspect and address them promptly.

What maintenance schedule do you recommend for alternator drive couplings?
It is recommended to inspect the alternator drive coupling during routine maintenance checks or every 100-150 flight hours. Regular inspections help identify signs of wear or damage early, ensuring timely servicing or replacement and maintaining optimal performance. For more information on when to overhaul your drive coupling, read this blog by the AOPA.

Can I service the alternator drive coupling myself, or should it be done by a certified technician?
While minor inspections and cleaning can be performed by knowledgeable individuals, it is advisable to have servicing or replacement of the alternator drive coupling done by a certified technician. They have the expertise and tools to ensure the coupling is properly serviced or replaced according to industry standards and manufacturer specifications. However,Hartzell Aviationdoes provide Alternator Coupling Tool Kits to support inspection and installation of select models.

What is included in your overhaul service for the alternator drive coupling?
Our overhaul service for the alternator drive coupling includes a thorough inspection for wear or damage, cleaning to remove contaminants, replacement of any worn or defective parts, and rigorous testing to ensure the coupling meets performance and safety standards. The service is designed to restore the coupling to optimal condition, extending its lifespan and reliability.

How can I troubleshoot issues with my alternator drive coupling?
To troubleshoot issues with your alternator drive coupling, start by checking for any unusual vibrations or noises and inspecting the coupling for visible signs of wear or damage. Ensure that all connections are secure and properly aligned. If problems persist, consult the aircraft’s maintenance manual for specific diagnostic procedures or seek assistance from a certified technician to conduct a detailed inspection and identify the root cause.
