Part#: 0750238-20AWL

Cessna C-180/C-182 Exhaust Collector – 0750238-20

* Free domestic shipping on orders over $350.

$972.00

In stock

In Stock

Overhaul is a process of returning a part to service using approved data to clean, inspect, and replace parts as required. This process may be performed by any qualified shop possessing the data and parts. The approved data may include the inspection and reuse of parts found within a given tolerance range.

Rebuilt is a process of returning a part to service using approved data to clean, inspect, and replace parts as required. This process is performed by the manufacturer and will replace parts with wear regardless of tolerance range. The unit is returned to new tolerances.

Customer property overhaul uses the same guidelines as an Overhaul with the customers property. It is a process of returning a part to service using approved data to clean, inspect, and replace parts as required. This process may be performed by any qualified shop possessing the data and parts. The approved data may include the inspection and reuse of parts found within a given tolerance range.

Factory Overhaul is a process of returning a part to service using approved data to clean, inspect, and replace parts as required. This process may be performed by any qualified shop possessing the data and parts. The approved data may include the inspection and reuse of parts found within a given tolerance range.

Details

CESSNA PART NUMBER 0750238-20 AND A0750238-20 IS REPLACED BY FAA APPROVED NEW PMA PART NUMBER 0750238-20AWL

C180 S/N 18052385 thru 18053203

182 S/N 18255059 thru 18268055

185 S/N 18502311 thru 18504394

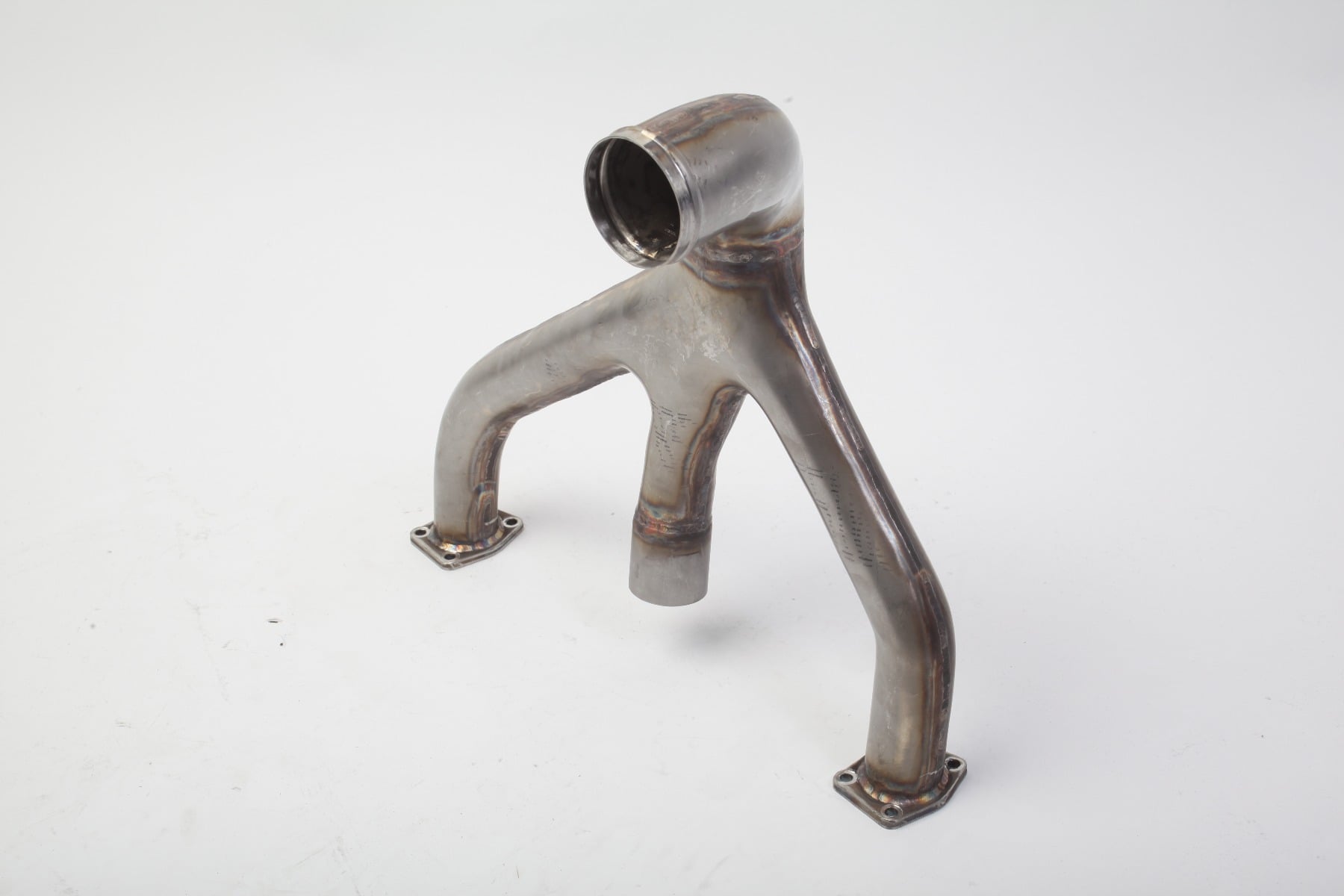

This 15″ Exhaust Stack with Center Slip Riser is engineered and manufactured in a high tech manufacturing facility, and welded and fabricated by an expert team, using high grade 321 aerospace stainless steel which provides reliable service and resist corrosion in high temperature exhaust system conditions.

AIRCRAFT MAKE / MODEL: CESSNA 182/185

PARTS CATEGORY: EXHAUST STACK WITH CENTER SLIP RISER

MATERIALS: 321 STAINLESS STEEL

ATTACHMENT: 2 BOLT FLANGE AND CADMIUM PLATED HARDWARE KIT

PART CONDITION: FAA APPROVED PMA NEW

AWI new, overhauled and repaired parts meet the FAA airworthiness requirements. This Exhaust Stack with Center Slip Riser may be purchased individually.

EXHAUST STACK MEASURES 15″ TALL

NEW STACKS DO NOT HAVE CENTER RISER CLAMPS

IF THERE IS A LARGE OVERLAY FROM BODY TO EXHAUST OUTLET, YOU NEED A NEW STACK

INTERNAL BAFFLES MUST BE INTACT TO BE AIRWORTHY

1964 180G + UP S/N 18251313 0-470-R, -U

1964 182G + UP S/N 18255059 0-470-R, -S, -U

1961 185 ALL MODELS IO470-F, IO520-D



Part Number: 0750238-20


0750238-20AWL replaced all of the other part numbers, including A075238-20
