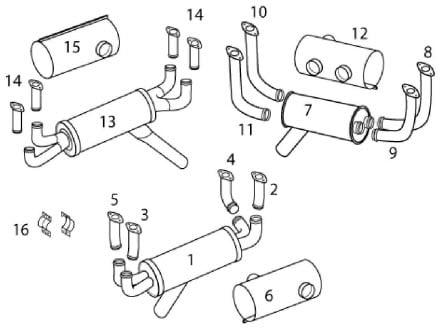

CESSNA 152 Exhaust System Itemized Parts List
| Item | Part # | Description | Condition |
|---|---|---|---|
| 01 | 0454009-5AWL | MUFFLER – “ELBOWS” NO INTERNAL BAFFLES | NEW PMA |
| 02 | 0454002-11AWL | RISER – LH – FWD – 2 BOLT FLANGE – GOES WITH A0454009-5 MUFFLER | NEW PMA |
| 03 | 0454002-4AWL | RISER – RH – FWD – 2 BOLT FLANGE – GOES WITH A0454009-5 MUFFLER | NEW PMA |
| 04 | 0454002-10AWL | RISER – LH – REAR – 2 BOLT FLANGE – GOES WITH A0454009-5 MUFFLER | NEW PMA |
| 05 | 0454002-2AWL | RISER – RH – REAR – 2 BOLT FLANGE – GOES WITH A0454009-5 MUFFLER | NEW PMA |
| 06 | 0454010-1AW | SHROUD – MUFFLER – 2 PC. – GOES WITH A0454009-5 MUFFLER | NEW PMA |
| 07 | 0454009-6AWL | MUFFLER – “STUBS ON END OF CAN” – NO INTERNAL BAFFLES | NEW PMA |
| 08 | 0454023-1AWL | RISER – LH – REAR – 2 BOLT FLANGE – GOES WITH A0454009-6 MUFFLER | NEW PMA |
| 09 | 0454023-2AWL | RISER – LH – FWD – 2 BOLT FLANGE – GOES WITH A0454009-6 MUFFLER | NEW PMA |
| 10 | 0454023-3AWL | RISER – RH – REAR – 2 BOLT FLANGE – GOES WITH A0454009-6 MUFFLER | NEW PMA |
| 11 | 0454023-4AWL | RISER – RH – FWD – 2 BOLT FLANGE – GOES WITH A0454009-6 MUFFLER | NEW PMA |
| 12 | 0454010-9AWL | SHROUD – MUFFLER – 2 PC. – GOES WITH A0454009-6 MUFFLER | NEW PMA |
| 13 | EL0099001-716 | MUFFLER – “ELANO” – HAS INTERNAL BAFFLES | OVERHAUL |
| 14 | EL0099001-271 | RISER – SYSTEM REQUIRES 4 RISERS – 2 BOLT FLANGE – GOES WITH EL0099001-716 MUFFLER | OVERHAUL |
| 15 | EL099001-717 | SHROUD – MUFFLER | OVERHAUL |
| 16 | A0750161-25KITSS | CLAMP – RISER | NEW |
