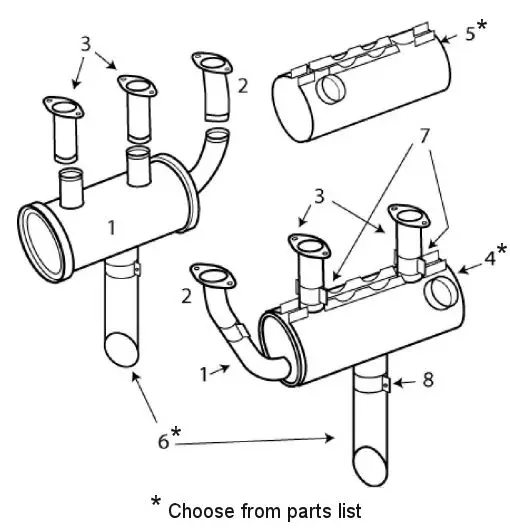

CESSNA 172 B-H Exhaust System Itemized Parts List
| Item | Part # | Description | Condition |
|---|---|---|---|
| 01 | A0550176-59 | MUFFLER – RH – SAME AS LH MUFFLER – SMOOTH – INTERNAL BAFFLE REQUIRED | NEW PMA |
| 01 | A0550176-59 | MUFFLER – LH – SAME AS RH MUFFLER – SMOOTH – INTERNAL BAFFLE REQUIRED | NEW PMA |
| 02 | A0550176-57 | RISER – CURVED – 4.5″ LONG – 2 BOLT FLANGE | NEW PMA |
| 03 | A0450338-14 | RISER – STRAIGHT – 2 BOLT FLANGE | NEW PMA |
| 04 | 0550176-3 | SHROUD – MUFFLER – LH – MUST SEND IN | OVERHAUL |
| 04 | 0550176-37 | SHROUD – MUFFLER – LH – MUST SEND IN | OVERHAUL |
| 05 | 0550176-38 | SHROUD – MUFFLER – RH – MUST SEND IN | OVERHAUL |
| 06 | A0550176-54 | 7.5″ LONG TAILPIPE | NEW PMA |
| 06 | A10172-013-2 | 12.375 LONG TAILPIPE | NEW PMA |
| 07 | A0750130-31KITCAD | CLAMP – RISER – SET OF 2 – INCLUDES HARDWARE | NEW |
| 08 | 0550176-26 | CLAMP – TAILPIPE – NO PIN | N/A |
| 08 | 0550176-31 | CLAMP – TAILPIPE – WITH PIN | N/A |
| N/S | 627429 | CYLINDER GASKET WITH HARDWARE | NEW |
Details
Continental O-300 Engine
Smooth muffler, same muffler for both RH & LH sides
Internal baffle is required for muffler to be airworthy.
Curved riser is ~ 4.5″ long
Straight riser p/n 0550157-7-Use A0450338-14!
