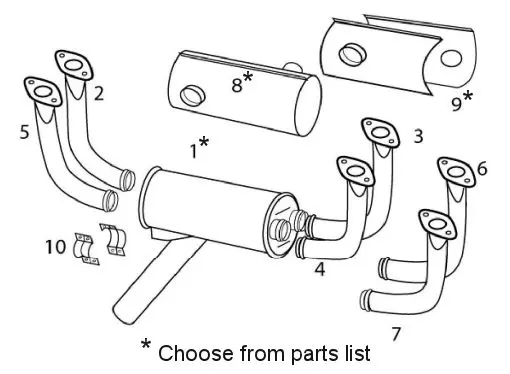

CESSNA 172 Lycoming Exhaust System Itemized Parts List
| Item | Part # | Description | Condition |
|---|---|---|---|
| 01 | A1754001-25 | MUFFLER – NO BAFFLES – 15″ TAILPIPE – IS APPROVED FOR MANY APPLICATIONS | NEW PMA |
| 01 | A1754001-23 | MUFFLER – NO BAFFLES – 13″ TAILPIPE – IS APPROVED FOR MANY APPLICATIONS | NEW PMA |
| 01 | A1754001-9 | MUFFLER – HAS BAFFLES – 15″ TAILPIPE | NEW PMA |
| 02 | A1754007-1 | RISER – RH – REAR – 2 BOLT FLANGE | NEW PMA |
| 03 | A1754008-1 | RISER – LH – REAR – 2 BOLT FLANGE | NEW PMA |
| 04 | A1754009-1 | RISER – LH – FWD – 2 BOLT FLANGE | NEW PMA |
| 05 | A1754010-1 | RISER – RH – FWD – 2 BOLT FLANGE | NEW PMA |
| 06 | A9954100-5 | RISER – LH – REAR – 2 BOLT FLANGE – 180 HP (O360) | NEW PMA |
| 07 | A9954100-6 | RISER-LH – FORWARD – 2 BOLT FLANGE – 180 HP (0360) | NEW PMA |
| 08 | 0554001-1 | SHROUD – MUFFLER – 1 PC. – SAME PORT CONFIF AS 2 PC. | OVERHAUL |
| 08 | 1754002-1 | SHROUD – MUFFLER | OVERHAUL |
| 09 | A9954100-3 | 2 PIECE SHROUD – MUFFLER | NEW PMA |
| 09 | 0554001-9 | SHROUD – MUFFLER | OVERHAUL |
| 10 | A0750161-25 | CLAMP – RISER – 1.75″ – EACH – ORDER 2 FOR SET – INCLUDES HARDWARE | NEW PMA |
| N/S | 1750011-4 | 2″ CARB HEAT BOX | NEW PMA |
| N/S | 1750011-7 | 2.5″ CARB HEAT BOX | NEW PMA |
| N/S | 77611 | CYLINDER GASKET WITH HARDWARE | NEW |
Details
If you have an Airplains conversion/STC with O-360 engine you will need to send your risers in for overhaul. Our PMA risers will not work with the Airplains STC.
Penn Yan STC uses O-360 risers on the left side.
172 I, K, L, M 0-320 150 H.P.
172 N, P O-320 160 H.P.
172 P O-360 160 H.P.
172 Q O-360 180 H.P.
