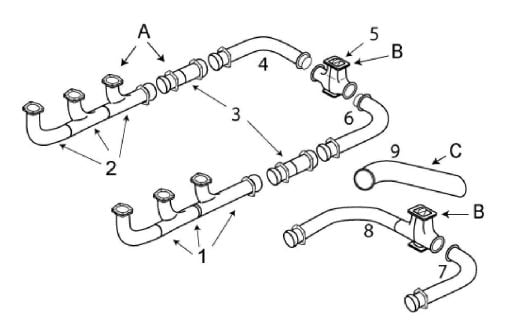

CESSNA 335 Exhaust System Itemized Parts List
| Item | Part # | Description | Condition |
|---|---|---|---|
| 01 | A9910295-13 | STACK ASSY – LH – 4 BOLT FLANGE | NEW PMA |
| 02 | A9910295-14 | STACK ASSY – RH – 4 BOLT FLANGE | NEW PMA |
| 03 | A9910296-7 | SLIP JOINT | NEW PMA |
| 04 | 9910301-16 | ELBOW – LH – INBOARD STACK – INCONEL | OVERHAUL |
| 05 | 9910301-15 | HEADER – LH – INCONEL | OVERHAUL |
| 06 | 9910301-14 | ELBOW – LH – OUTBOARD STACK – INCONEL | OVERHAUL |
| 07 | 9910301-17 | ELBOW – RH – INBOARD STACK – INCONEL | OVERHAUL |
| 08 | 9910301-18 | HEADER – RH – INCONEL | OVERHAUL |
| 09 | K0850711-43 | TAILPIPE – LH | NEW |
| 10 | K0850711-44 | TAILPIPE – RH | NEW |
Details
Subject to AD 2000-01-16
AWI is authorized by the FAA to meet the overhaul requirements (paragraph “G”) on AD 2000-01-16.
Visual inspection every 50 hours or 30 days.
Remove tailpipes inspect for cracks every 12 months.
Inspect & pressure test exhaust system every 12 months.
Replace multi-segment V-band clamps every 500 hours.
Remove the exhaust system from the slipjoints aft to all turbo charger every 2,500 hours or 12 years, whichever occurs first.
C-335 uses solid flanges same as a sealess 340/414.
Inconel Header and Elbows
Pay special attention to:
A: Inspect all slipjoints for movement
B: Check flow divider plate for cracks or distortion
C: Check tailpipe for internal pitting and wall thickness
