Products/Aircraft Exhaust System/Cessna/337

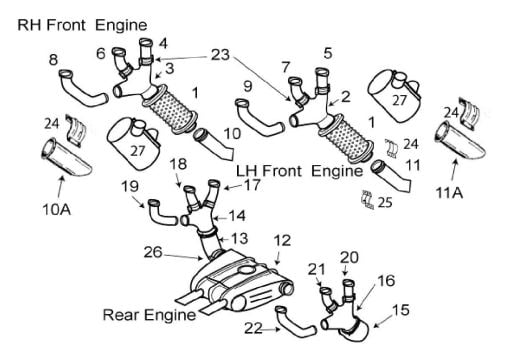

CESSNA 337 Exhaust System Itemized Parts List

Item Part # Description Condition
01 A1250250-5 HEAT EXCHANGER – RH FRONT ENGINE NEW PMA
01 A1250250-5 HEAT EXCHANGER – LH FRONT ENGINE NEW PMA
02 1555000-15 COLLECTOR – LH – FRONT ENGINE OVERHAUL
03 1555000-14 COLLECTOR – RH – FRONT ENGINE OVERHAUL
04 1455014-27 RISER – RH -CLY #1 – FRONT ENGINE – 2 BOLT FLANGE OVERHAUL
05 1455014-17 RISER – LH – CLY #2 – FRONT ENGINE – 2 BOLT FLANGE OVERHAUL
06 1455014-26 RISER – RH -CLY #3 – CENTER – FRONT ENGINE – 2 BOLT FLANGE OVERHAUL
07 1455014-18 RISER – LH – CLY #4 – CENTER – FRONT ENGINE – 2 BOLT FLANGE OVERHAUL
08 1455014-25 RISER – RH – CLY #5 – FRONT ENGINE – 2 BOLT FLANGE OVERHAUL
09 1455014-19 RISER – LH – CLY #6 – FRONT ENGINE – 2 BOLT FLANGE OVERHAUL
10 1554000-2 TAILPIPE – RH – ANGLE BEND OVERHAUL
10A 1555000-8 TAILIPIPE – RH – STRAIGHT ANGLE CUT OVERHAUL
11 1554000-1 TAILPIPE – LH – ANGLE BEND OVERHAUL
11A 1555000-7 TAILIPIPE – LH – STRAIGHT ANGLE CUT OVERHAUL
12 1555001-1 MUFFLER – REAR OVERHAUL
13 1555011-13 ELBOW – LH OVERHAUL
14 1555011-9 COLLECTOR – LH – REAR OVERHAUL
15 1555011-12 ELBOW – RH – BOTTOM OF COLLECTOR OVERHAUL
16 1555011-10 COLLECTOR – RH – REAR OVERHAUL
17 1455014-27 RISER – CLY #1 – REAR ENGINE – 2 BOLT FLANGE OVERHAUL
18 1455014-26 RISER – CLY #3 – REAR ENGINE – 2 BOLF FLANGE OVERHAUL
19 1455014-25 RISER – CLY #5 – REAR ENGINE – 2 BOLT FLANGE OVERHAUL
20 1455014-17 RISER – CLY #2 – REAR ENGINE – 2 BOLT FLANGE OVERHAUL
21 1455014-18 RISER – CLY #4 – REAR ENGINE – 2 BOLT FLANGE OVERHAUL
22 1455014-19 RISER – CLY #6 – REAR ENGINE – 2 BOLT FLANGE OVERHAUL
23 A1250860-29 CLAMP – RISER – 1.75″ – EACH – ORDER 2 FOR SET – INCLUDES HARDWARE NEW PMA
24 A0750161-22 CLAMP – TAILPIPE -EACH – NO PIN – 2 5/8″ – INCLUDES HARDWARE NEW PMA
25 A0750161-24 CLAMP – TAILPIPE -EACH – PIN – 2 5/8″ – INCLUDES HARDWARE NEW PMA
26 1555002-1 CLAMP – MUFFLER N/A
27 1550126-1 CLAMP – TAILPIPE F.E. N/A

Details

Please pay special attention to:
Rear muffler for cracking and corrosion
Front mufflers for buldging and internal cones
Check all beads for leaks
