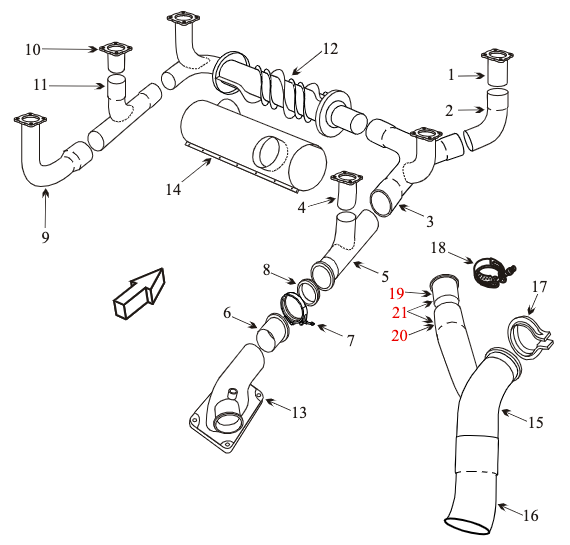

CESSNA T-206H Exhaust System Itemized Parts List
| Item | Part # | Description | Condition |
|---|---|---|---|
| 1 | 40G22384 | ADAPTER EXHAUST PIPE CYL | |
| 2 | 40B22190 | PIPE EXHAUST CYL #1 | |
| 3 | 40B22621 | PIPE EXHAUST CYL #2 | |
| 4 | 40B22193 | PIPE EXHAUST CYL #3 | |
| 5 | 40B22267 | PIPE EXHAUST INTER CYL #5 | |
| 6 | 40C22381 | FLANGE EXHAUST MANIFOLD | |
| 7 | 40D22382 | COUPLING V-BAND EXHAUST TO TRANSITION | |
| 8 | 78246 | GASKETS V-BAND COUPLING 2 1/4” TUBE | |
| 9 | 40B22380 | PIPE EXHAUST LEFT CYL #6 | |
| 10 | 40G22384 | ADAPTER EXHAUST PIPE CYL #4 | |
| 11 | 40B22379 | PIPE EXHAUST LEFT CYL #4 | |
| 12 | 40B22318 | PIPE EXHAUST CYL #2 | |
| 13 | 47C22625 | TRANSITION ASSY | |
| 14 | S-3262-1 | CLAMP TURBO BY PASS TAILPIPE | |
| 15 | 1250992-1 | TAILPIPE | |
| 16 | 1250999-1 | TAILPIPE EXTENSION (NEED KIT NK206-53-01) | |
| 17 | S1921-1 | CLAMP TALPIPE | |
| 18 | S3261-6 | CLAMP TURBO BY PASS TAILPIPE | |
| 19 | 1250992-8 | ||
| 20 | 1250992-6 | ||
| 21 | 1250992-7 | ||
| - | 75845 | GASKET TRANSITION–WASTEGATE | |
| - | 24096-225-N | GASKET V-BAND COUPLING | |
| - | 40D22383 | COUPLING V-BAND | |
| - | LW-18234 | GASKET | |
| - | 0514213-1 | SEAT BASE FRAME |
