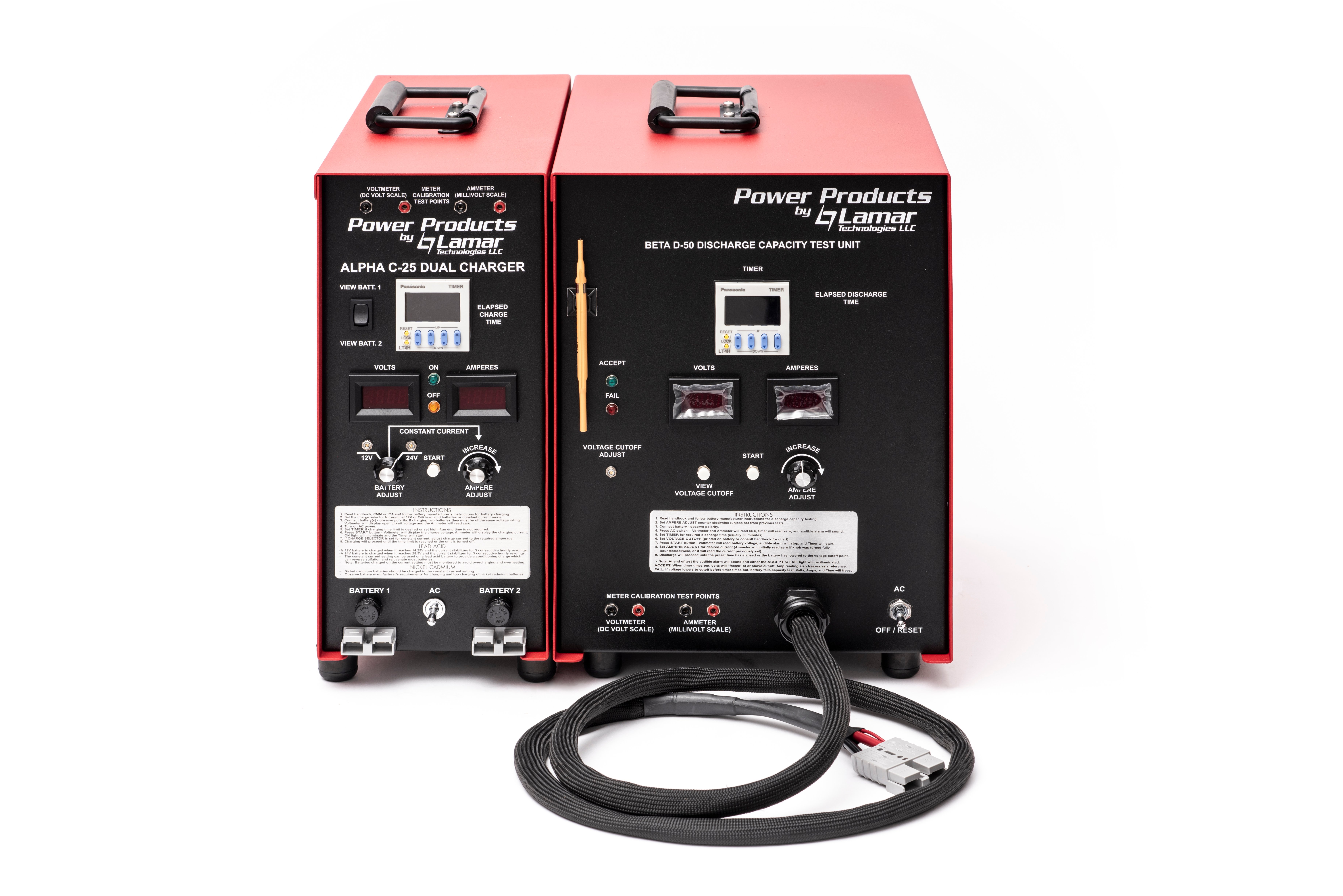

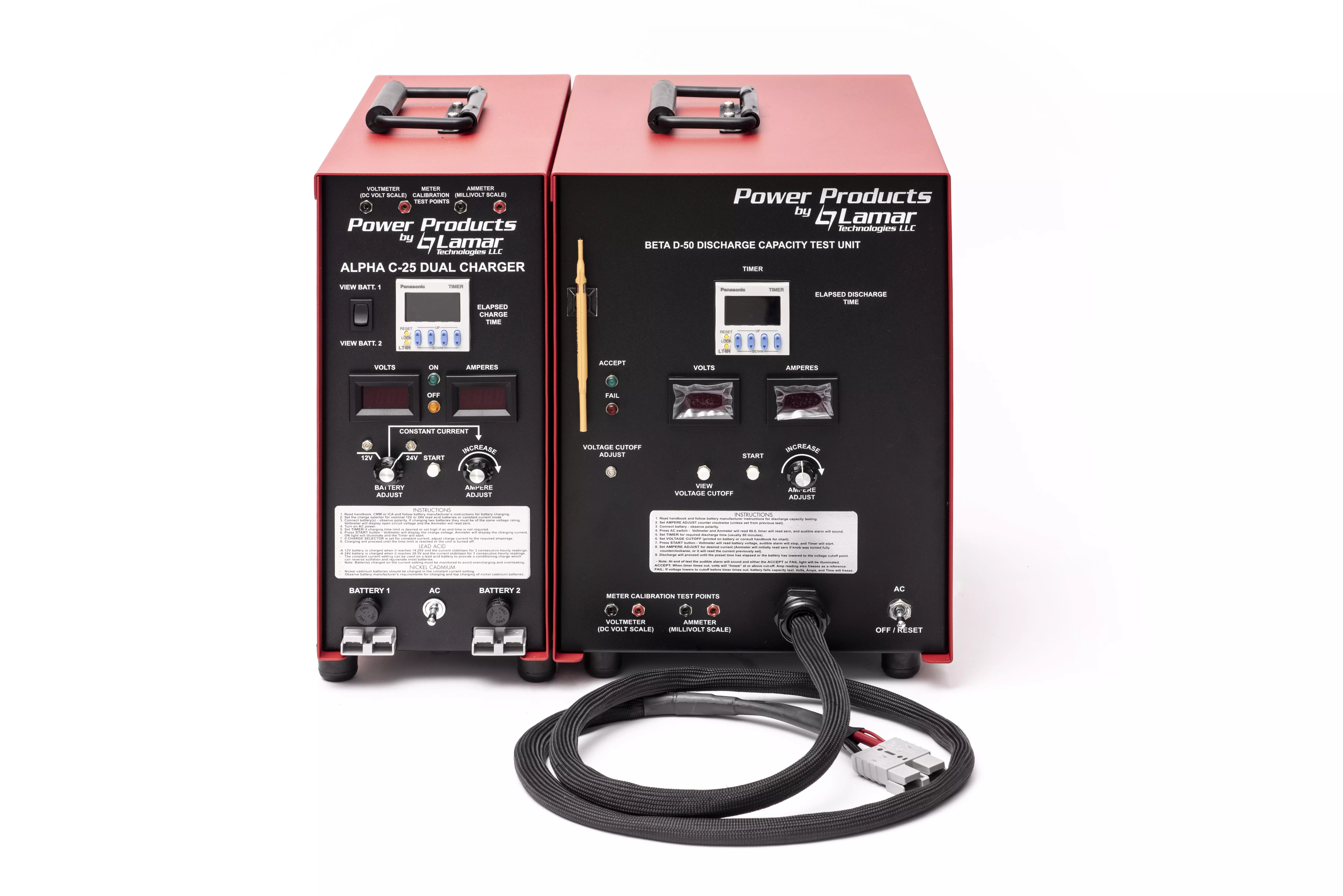

ALPHA C-25, BATTERY CHARGER

Dual output charger for all types and ratings of Nickel Cadmium, sealed or vented Lead Acid aircraft batteries.

Features

• Isolated charge – one or two batteries. Charges all 12 and 24 volt Lead Acid batteries and 1-22 cell NiCads.
• Current adjustable from 0 to 25 amps.
• True constant current (Cl) for NiCad batteries or constant potential (CP) for Lead Acid batteries
• Digital ammeter and voltmeter read charge current and voltage for either battery.
• Selectable charge time from 1 to 999 minutes with digital elapsed time.
• Operates on either 115 or 230 VAC.

Operation

• Select 12 or 24V for Lead Acid or constant current for NiCad charge/topping or Lead Acid conditioning.
• Set charge time.
• Set charge current.

Controls

• Three position selector: 12V Lead (CP), 24V Lead (CP) or NiCad (CI).
• Current adjust – 5 turn: 0 to 25 amperes.
• Settable digital charge timer, 1 to 999 minutes.
• Digital voltmeter and ammeter.
• Constant Potential for 12 and 24V Sealed Lead Acid batteries. 35V max for NiCad.
• AC switch.
• AC line selector – on rear: 115 or 230V.

• Model and P/N: ALPHA C-25
• Charge current: 0-25 amperes total
• AC input: 12A@115V, 6A@230V / 50/60Hz
• DC output cables: 3 sets: Elcon, aligator clips, rings
• Charge voltage/current accuracy: +/- 1%
• NSN: 6130-01-462-6335; 6130-21-258-4429 Canada
• Dimensions: 6”L x 14”H x 15”D
• Weight: 45 lbs
